超薄超輕
無縫一體化框架設計，比傳戶外箱體輕30%-60%，降低結構負荷和安裝成本

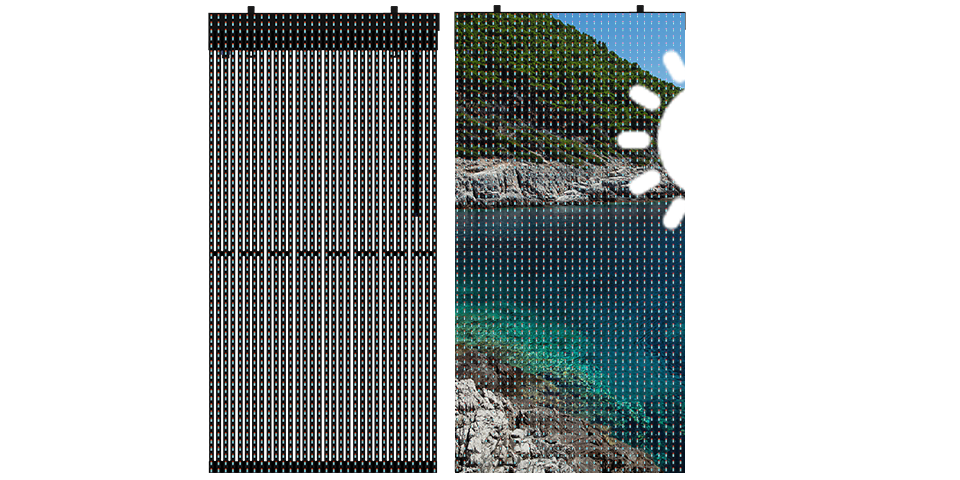

高通透，風阻小
透光率隨像素間距變化而變化，在35%-85%之間，有效減少風阻
更低功耗
< 100W每平方（平均功耗）
高低溫保護
耐高低溫極端天氣，-40℃~60℃及各種潮濕天氣中正常運作
定制化設計
適用于不同建筑外墻，可根據建筑立面形狀定制結構，與建筑設計完美匹配
高亮度可選
亮度可高達13000nit/㎡，無懼陽光直射，清晰顯像
IP67防水防塵設計
一體化灌膠工藝設計，IP67全防護
易于維護
單人亦即可輕松完成前/后維護
Galaxy Series - DIP Mesh Curtain LED Screen SMD/DIP DIP Pixel Pitch(H*V)(mm) P15.625 P16.67 P20 P25 P15.625-31.25 P31.25 Pixel Density(dots/㎡) 4096 3600 2500 1600 2048 1024 Brightness(cd/㎡) 6000-10000 6000-9000 6000-8000 6000-8000 6000-10000 5000-6000 LED Lamp DIP346 Cabinet Size 500*1000mm(500*500mm /1000*1000mm optional) Cabinet Resolution 32*64 30*60 25*50 20*40 16*32 16*16 Panel Maximum Power(W) 200W 175W 200W 150W 175W 100W Panel Average Power(W) 70W 60W 60W 60W 80W 60W Max.Power Consumption(W/㎡) 400w 400W 400W 300w 400W 300W Power distribution 400w 400W 400W 400W 400W 400W Transparency Rate 38% 32% 50% 60% 68% 68% Viewing Distance(m) ≧16m ≧18m ≧20m ≧25m ≧25m ≧32m Weight(kg/㎡) 18.4KG 18KG 13KG 13KG 12KG 12KG Viewing Angle(left/right) 120°±5° Viewing Angle(up/down) 60°±5° Driving Method Static State LED Driving Method MBI5120 Materials Aluminium Profile & PC mask & Die-casting Lock Pixel Composition 1R1G1B Operating Input Voltage(V) 5V Control System NOVA Gray Scale ≧14bits Brightness Adjustment 256 Brightness Levels Refresh Rate 3840(All products can reach) Refresh Frame Frenquncy ≧60HZ Maintenance Way Front/Rear(Depends on the installation environment) Ingress Protection IP66 Continuous Use Time >72h Life Span 100,000h MTBF >10,000h Blind Spot Rate <0.01% Operating Temperature -20℃～+50℃(Below -20 degrees could be customized) Operating Humidity Outdoor 10% - 90%
格柵屏
首頁格柵屏

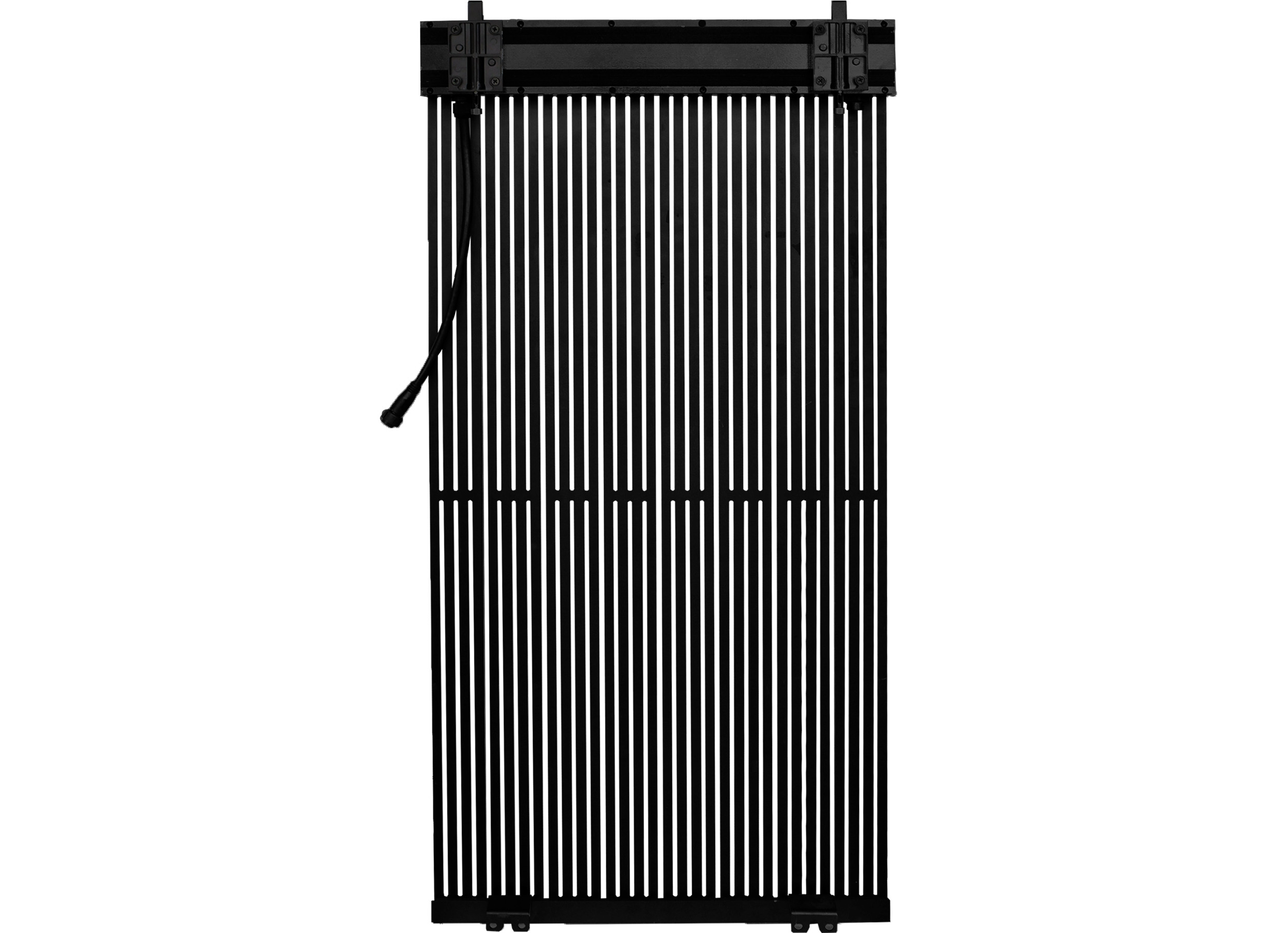

Galaxy銀河系列
DIP直插格柵屏
尺寸：500x1000mm/ 500x500mm/ 1000x1000mm
像素間距：P15.625/ P16.67/ P20/ P25/ P15.625-31.25/ P31.25/ P25-50
高亮可達 15000nits/㎡
與傳統戶外屏相比節能 1/3
應用領域：建筑外墻、建筑屋頂、戶外廣告牌
